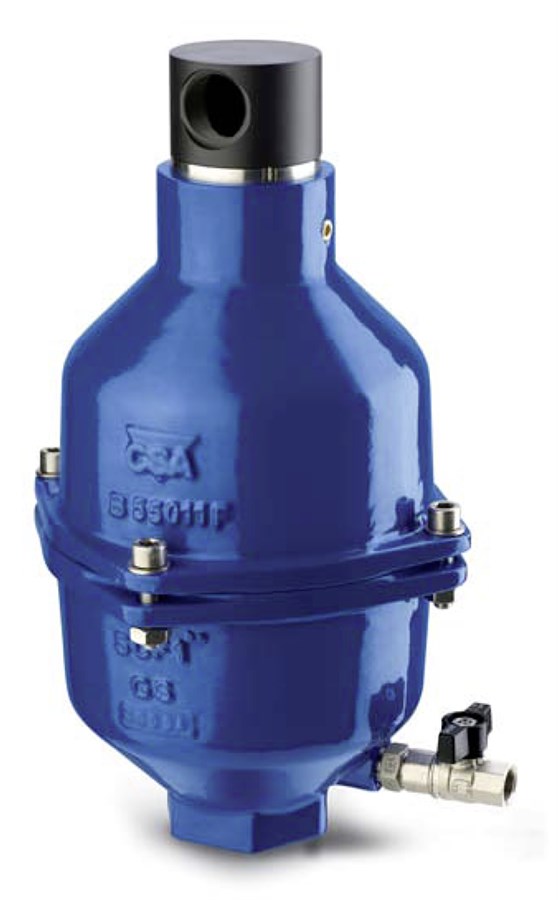

AVK ANTI-WATER HAMER COMBINATION AIR VALVE, ANTI-SLAM, PN16
SCA 2” for wastewater, A2 Delta Seal GZ fasteners, 250µm blue RAL5005 EP coating
Contact
Chan Chee Leong
Senior Manager, Sales and Marketing
Air relief valve for wastewater and neutral liquids to max. 70°C
AVK anti-water hammer combination air valves guarantee the proper operation of sewage lines allowing the entrance of a large quantity of air in case of pipe burst or draining, the release of air pockets during working conditions and the discharge during pipe filling.
| Variant 861/51-001 | |
|---|---|
| Connection: | No connection type specified |
| Material: | Ductile iron |
| DN: | DN50 |
| PN: | PN 16 |
Features
- Lower body designed with strongly slopped high walls to avoid grease and/or other material deposit, and it contains four ribs to guide the stainless steel float
- Upper body contains the AS and the air release mechanism which is protected against water hammer effect, during rapid filling phases, by a stainless steel deflector
- Mobile block including a large AISI 316 stainless steel float placed on the lower body and connected through a stainless steel rod to the air release mechanism
- Anti-shock automatism composed of a metallic disc with two or more small orifices, a guide bar and a counteracting spring in stainless steel
- Drainage valve for chamber control and draining
- Maintenance can be easily performed from the top without removing the air valve from the pipe
- Evacuation bend suitable for flooded environments with 1" threaded outlet
- Working pressure 0,2 - 16 bar differential pressure
Downloads
Datasheet

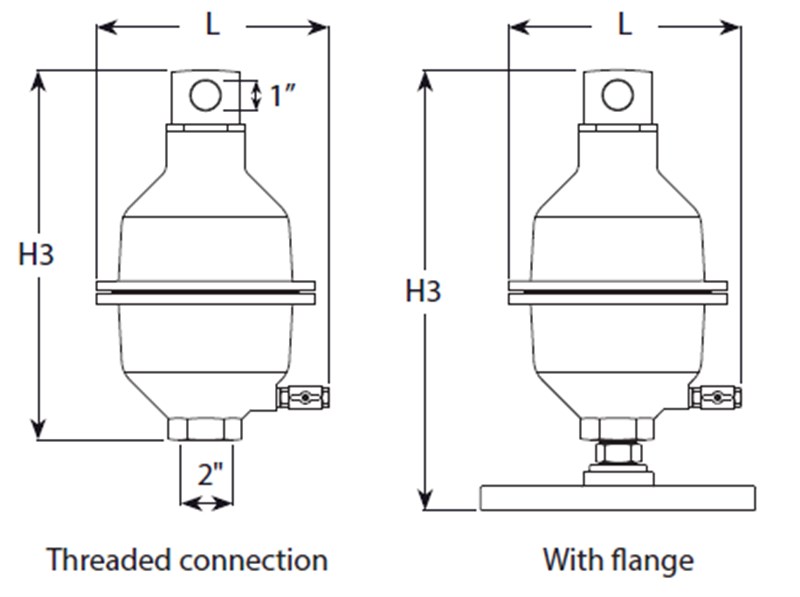

Reference nos. and dimensions:
Scroll for more info
| Reference no. | Gross Price MYR |
DN mm |
Flange drilling |
Connection |
L mm |
H3 mm |
Theoretical weight/kg |
|---|---|---|---|---|---|---|---|
| 861-0050-51-0911 | 6,578 | 50 | 2" Threaded | 150 | 390 | 11 |
Enquiry
Scroll for more info

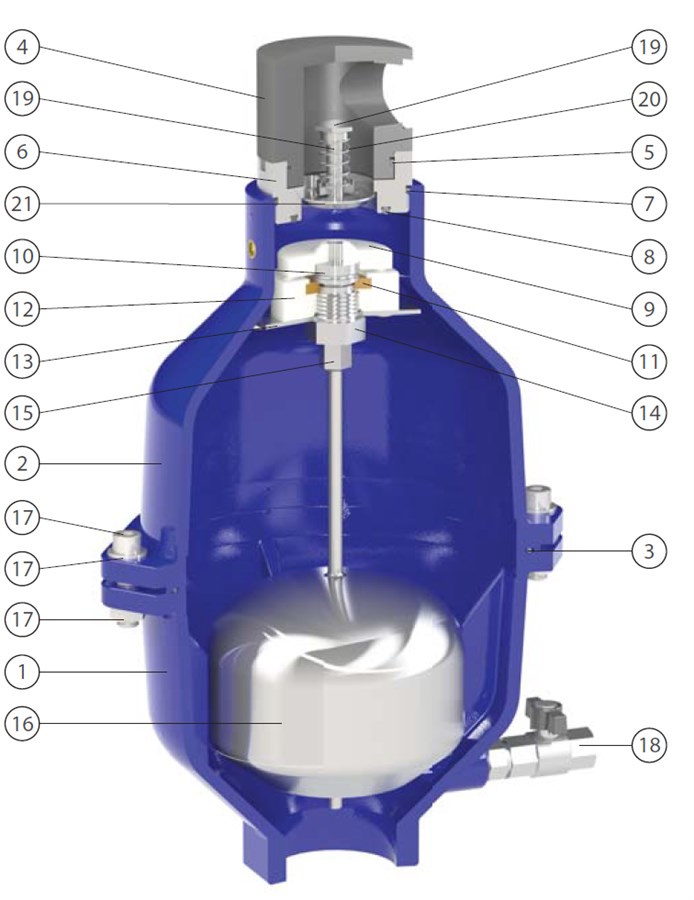

Components
